The Pico Time-Digitizing Correlator Data Viewer

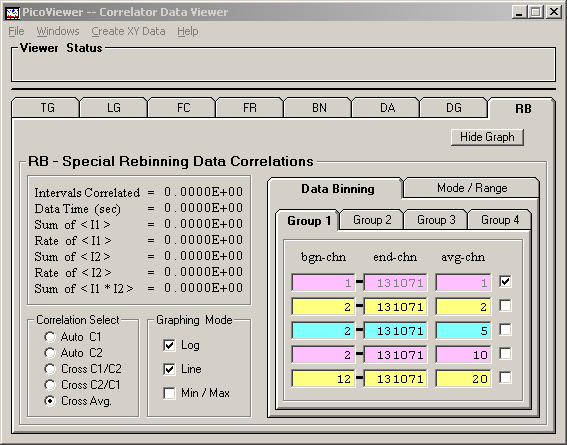

Starting the PViewer program displays the main control panel
and graphing selection window. The tabbed selection window
is used to activate the graphing windows for the TG, LG, FC,
FR, BN, DG, DA, and RB spectra. Each tabbed selection
shows the correlated intervals / bins, the acquisition time,
total events in each channel, and acquisition count rate
in each channel. Selectable display parameters include
linear / logarithmic time scales and dot / line drawing mode.
The Min/Max mode spreads the vertical range to match that
of the data set rather than a set scaling factor. Additional
display modes will be noted with their respective graph
descriptions. The graph can be removed from the screen by
clicking the Hide Graph(s) button. The graph can be made
visible by double clicking the tab.
The Pico Data Viewer is a companion utility program
for the Pico Time-Digitizing Correlator acquisition program.
Data saved by the 'PAdvisor' program can be read into the
'PViewer' program and viewed. Multiple data runs can be
merged for viewing and saved into a single merged data
file.
Additionally the fast correlation data (FC) which has
131,072 channels at 125 ps. or 262,144 channels at 62.5 ps.,
can be arbitrarily rebinned using upto 20 rebinning parameter
sets. The rebinned data can then be output as X-Y parameters
to a data file which can be easily imported into an external
analysis or veiwing program.
-
-
-
